BB-FOSTCDR-INV
Data rates up to 115.2 kbps
4 km (2.5 mi) range
10 – 30 VDC input voltage
Wide operating temperature
2,000V, 2-way optical isolation
Modbus ASCII/RTU compatible
EMI / RFI protection
TD, RD and Power LEDs

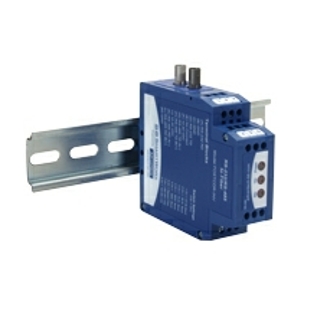

Model FOSTCDR-INV, serial to multimode fiber optic converter, is suitable for standard industrial installations. It extend data communications up to 4 km (2.5 mi) and provides two-way optical isolation on the input and output lines. Model FOSTCDR-INV provides the most versatile connection possible between any asynchronous full- or... More
相关产品
Data rates up to 115.2 kbps
10 – 48 VDC input power range
Wide operating temperature
2,000V, 3-way optical isolation
Modbus ASCII/RTU compatible
EMI / RFI protection
UL Class 1/Division 2
Inverted fi
Dataratesupto115.2kbps15km(9mi)range10to48VDCpowerinputWideoperatingtemperature2000VoltsisolationModbus ASCII / RTU compatibleEMI / RFI protection
Data rates up to 115.2 kbps
15 km (9 mi) range
10 to 48 VDC power input
Wide operating temperature
2000 Volts isolation
Modbus ASCII / RTU compatible
EMI / RFI protection
ESD Protection - 8 kV Contact, 15 kV Air
Rugged Metal Case
Panel Mount with Available DIN Rail Adapters
Built-in Switchable Bias & Termination
UL Listed
ESD Protection - 8 kV Contact, 15 kV Air
Rugged Metal Case
Wide Operating Temperature
Panel Mount with Available DIN Rail Adapters
Built-in Switchable Bias & Termination
UL Listed
|
