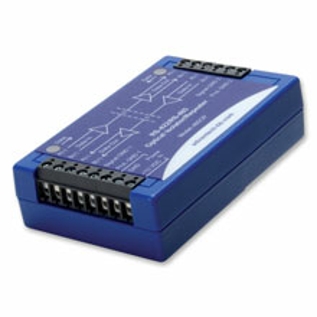

BB-485OP
2 kV optical isolation protection
Add up to 32 nodes to RS-485 network
RS-422 2-wire, RS-485 2 or 4-wire
Modbus support
UL Recognized
Model 485OP is an optically isolated RS-422/485 signal repeater. In addition to 2KV isolation on the data lines, it can be used to extend RS-422/485 circuits an additional 1.2 km (4,000 ft.), thereby doubling the range. An added benefit is the ability to add another 32 nodes to an RS-485 network and join 2 and 4 wire systems. The compact... More
