External rear-panel interface connector for the MIC-3325 CPU board
Supports VGA,LAN , USB 2.0, COM, SATA interface
One VGA , one RJ-45 LAN, and two USB ports USB on the rear panel
Two on board COM pin headers for RS-232
One on-board SATA-II connectors
The MIC-3525 is the first Rear Transition Module (RTM) for MIC-3325. It supports: 1x VGA, 1x RJ-45 LAN, 2x USB on the rear panel and 2x on board COM pin headers for RS-232 and 1x on-board SATA-II connectors.

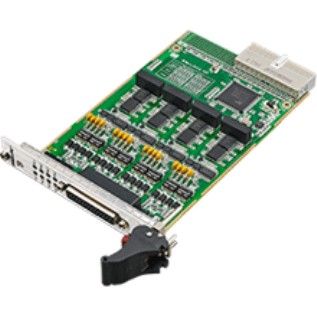

4-port RS-232/422/485
32bit 33MHz PCI bus backplane
Speeds up to 115200 bps
16C550 Compatible 5G Register Set
2KV Surge protection
Support 5V only power input
RIO Support 4-port or 8-port RS-232/422/4
Standard 3U 4HP CompactPCI® form factor
Up to four Intel® i210 Ethernet controllers
Four or two 10/100/1000BASE-T Ethernet ports via RJ-45 connectors
Two LAN ports switchable to rear (MIC-3958R)
Com
