产品功能
◆ Intel® Bay Trail™ E3845/J1900 CPU
◆ 板载4GB DDR3 内存
◆ 板载32G~128G mSATA 电子盘 (可选)
◆ 板载2 路带隔离CAN 接口
◆ LVDS/CRT 显示接口
◆ 1 个USB3.0,3 个USB2.0 接口
◆ 2 个100/1000M i210 网络
◆ 4 个 RS232/485/422 接口
◆ 工作温度:-25°C to +75°C
扩展温度:-40°C to +85°C
技术参数
核心系统
CPU Intel® Bay Trail E3845 /J1900 SOC CPU
E3845 1.91GHz 10W(TDP)
J1900 2.00GHz 10W (TDP)
显示
GPU Feature 7th Generation Intel® Processor SOC
Display Interface LVDS support
CRT support
操作系统支持
Standard Support Windows 7/8 32/64-bit, Win10, Linux 32/64-bit
Extended Support VxWorks 32/64-bit

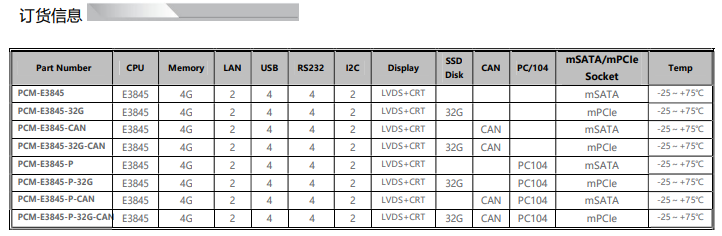

订货信息
Intel® Bay Trail™ E3845 Processor PC/104 Module
I/O 接口
USB 1 x USB 3.0 ,3 USB2.0
Serial 4 x RS232/RS485/RS422
SSD Disk 1 x 32G ~ 128G
CAN 2 x CAN
ETH 2 x 100/1000M GbE
I 2C 2 x I2C
电源
Standard Input DC 5V 3A (or +12V)
机械尺寸及环境
Dimension Mini size: 90mm x 96 mm x 15mm
Operating Temperature Standard: -25°C to +75°C
Extreme Rugged:-40 to +85°C (optional, E3845 only)
Humidity 5-90% RH operating, non-condensing
5-95% RH storage (operating with conformal coating)
Part Number
