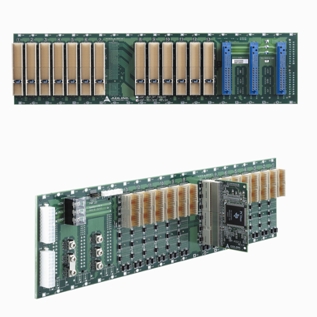

cBP-3213PR 3U CompactPCI 32-bit 13-slot Backplane with Rear I/O
主要特点
PICMG 2.0 CompactPCI Specification Rev. 3.0 compliant
One system slot and twelve peripheral slots via cBP-R3213 bridge boar
10-layer PCB for accurate impedance control and electronic noise immunity
Two ATX sockets with DC screw terminals
主要特点
-
PICMG 2.0 CompactPCI Specification Rev. 3.0 compliant
-
One system slot and twelve peripheral slots via cBP-R3213 bridge boar
-
10-layer PCB for accurate impedance control and electronic noise immunity
-
Two ATX sockets with DC screw terminals
-
32-bit PCI bus on P1, support 7 bus-mastering I/O slots
