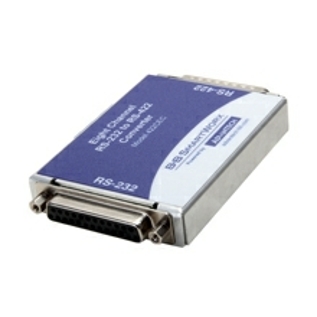

BB-422CEC
Converts unbalanced RS-232 signals to balanced RS-422 signalsConverts 8 channels of RS-232 to RS-422Data rates up to 115.2K baudExtend your RS-232 line up to 1200 meters (4000 feet)RS-422 driver has the ability to drive 10 RS-422 receiversconnected i
Model 422CEC, 8-channel RS-232 to RS-422 converter, converts unbalanced RS-232 signals to balanced RS-422 signals. The RS-422 Standard uses a balanced voltage digital interface to allow communications of 90K bits per second on cable lengths of 1200 meters (4000 feet). If this baud rate is exceeded the line length will decrease... More
相关产品
Extend RS-232 data signals up to 1.2 km (4,000 ft.)
Converts RS-232 TD and RD to balanced RS-422 signals
Baud rates up to 115.2 kbps
Powered from RS-232 handshake lines - no power supply required
Extend RS-232 data signals up to 1.2 km (4,000 ft.)Change RS-232 TD and RD to balanced RS-422 signalsAutomatic Send Data Control - no software drivers necessaryBaud rates up to 115.2 kbpsPowered from
1,500 Volts optical isolation
Converts RS-232 to RS-422/485
4-wire, full-duplex RS-485
2-wire, half-duplex RS-485
Extend RS-232 data signals up to 1.2 km (4,000 ft.)
Change RS-232 TD and RD to RS-485 signals
Automatic Send Data Control - no software drivers necessary
Baud rates up to 115.2 kbps
Powered from RS-23
Modbus compatible serial conversion
Removable terminal blocks for RS-422/485
2,000V two-way optical isolation
Automatic Send Data Control - no software drivers necessary
|
