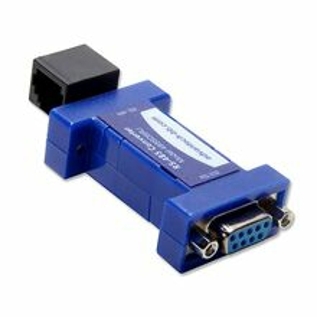

BB-485SD9RJ
Extend RS-232 data signals up to 1.2 km (4,000 ft.)
Change RS-232 TD and RD to RS-485 signals
Automatic Send Data Control - no software drivers necessary
Baud rates up to 115.2 kbps
Powered from RS-232 handshake lines - no power supply required
This port-powered, two channel converter allows your computer to communicate longer distances by converting TD and RD RS-232 lines to RS-485 signals. RS-485 also provides multi-drop capability. Model 485SD9RJ features Automatic Send Data Control which enables the driver when data is present on the RS-232 side. Control of... More
