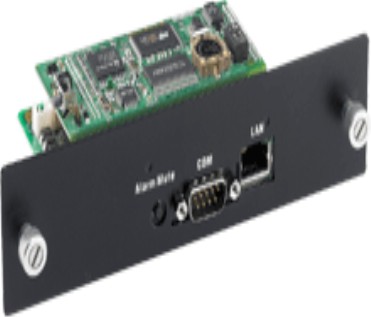

MIC-3927
Compatible with PICMG 2.1, 2.16, and 2.9-compliant componentsMonitors via the Intel®ligent Platform Management Bus (IPMB) protocolProvides isolated IPMI signals for each slotformaximumsecurityandreliabilityOutofbandmanagement interfaceHot swap
The MIC-3927 is a proprietary form factor Chassis Management Module (CMM) intended for use with PICMG* 2.1, 2.16, and 2.9-compliant systems (the CompactPCI* Hot Swap, Packet Switching Backplane, and System Management specifications respectively). The MIC-3927 plugs into a dedicated slot in compatible systems. It provides... More
