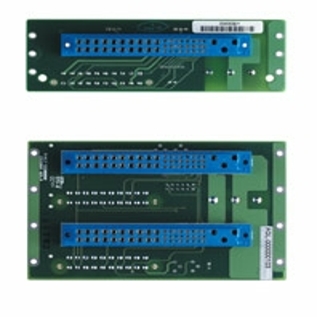

cBP-3061/cBP-3062 PICMG 2.11 3U CompactPCI 47-pin Power Backplanes
主要特点
AC (and DC) Screw terminal input
cBP-3061 for single power supply, cBP-3062 for dual power supply
PICMG 2.0 CompactPCI Specification Rev. 2.1 compliant
主要特点
-
AC (and DC) Screw terminal input
-
cBP-3061 for single power supply, cBP-3062 for dual power supply
-
PICMG 2.0 CompactPCI Specification Rev. 2.1 compliant
-
Design for 47-pin 3U CompactPCI redundant power supply
-
Two ATX connectors for DC output connection
