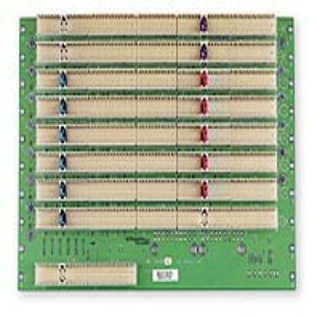

cBP-6609A 8槽64位6U CompactPCI® H.110和PICMG® 2.16背板
主要特点
PICMG: 2.0 R3.0, 2.1 R2.0, 2.5 R1.0, 2.16, 2.9 R1.0
cPCI总线:最高64位/66MHz
系统插槽:右手侧; 系统插槽后走线I/O: P3、P4和P5
外设插槽: 6;外设插槽后走线I/O:P4和P5
H.110总线:符合PICMG® 2.5规范,用于所有外设插槽 (P4)
主要特点
-
PICMG: 2.0 R3.0, 2.1 R2.0, 2.5 R1.0, 2.16, 2.9 R1.0
-
cPCI总线:最高64位/66MHz
-
系统插槽:右手侧; 系统插槽后走线I/O: P3、P4和P5
-
外设插槽: 6;外设插槽后走线I/O:P4和P5
-
H.110总线:符合PICMG® 2.5规范,用于所有外设插槽 (P4)
