BB-232LPTTL33
Converts 2 channels in each direction from 3.3V TTL (“Transistor Transistor Logic") to RS-232
Baud rates up to 115.2 kbps
Powered from RS-232 data/handshake lines - no power supply required
Model 232LPTTL33, 4-channel TTL/CMOS converter, makes easy connections between TTL equipment and RS-232 ports and operates at data rates up to 115.2 kbps. It converts two channels (TX and RX) in each direction (bi-directional) from TTL to RS-232. Model 232LPTTL33 converts RS-232 to 3.3VDC TTL/CMOS compatible levels... More
相关产品

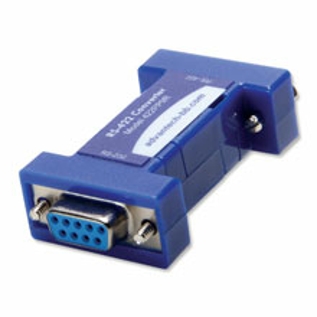

Converts unbalanced RS-232 signals to balanced RS-422 signalsConverts 8 channels of RS-232 to RS-422Data rates up to 115.2K baudExtend your RS-232 line up to 1200 meters (4000 feet)RS-422 driver has t
Extend RS-232 data signals up to 1.2 km (4,000 ft.)
Converts RS-232 TD and RD to balanced RS-422 signals
Baud rates up to 115.2 kbps
Powered from RS-232 handshake lines - no power supply required
Extend RS-232 data signals up to 1.2 km (4,000 ft.)Change RS-232 TD and RD to balanced RS-422 signalsAutomatic Send Data Control - no software drivers necessaryBaud rates up to 115.2 kbpsPowered from
1,500 Volts optical isolation
Converts RS-232 to RS-422/485
4-wire, full-duplex RS-485
2-wire, half-duplex RS-485
Extend RS-232 data signals up to 1.2 km (4,000 ft.)
Change RS-232 TD and RD to RS-485 signals
Automatic Send Data Control - no software drivers necessary
Baud rates up to 115.2 kbps
Powered from RS-23
|
